Handheld Oscilloscope Hantek DSO1060
Characteristic:
Excellent Industrial Design .Direct key for Each Channel ,Time base ,Trigger and DMM,easy to operate.
Large 5.7 inch TFT Color LCD Display ,Led backlight,Display clearly.
USB Host/Device 2.0 full-speed interface ,support removeable disk, RS-232/LAN Optional ,Easy to control by PC or long-distance.
High Bandwidth 60MHz-600MHz Oscilloscope ,and 6000 COUNTS high precision DMM.
High refresh rate,High Real-time Sample Rate 150MS/s-2GS/s, 50GS/s Equivalent-time Sample Rate.
FFT , + , - , * , / ,X-Y, 22 kinds of auto measurements, PASS/FAIL Check ,easy to use on production line.
Multiform Trigger mode ,2 separate Time Base in ALT Trigger mode ,easy to see 2 signal with different frequency.
1000 waveforms save and record.
Battery Power Operation (Installed) Industrial Design.
Save waveform in the following: jpg/bmp graphic file, MS excel/word file.
Dimensions (mm):240(L)x165(W)x50(H), be carried easily.
LabviewVBVC Second Design instance.
Specification:
|
MODE
|
DSO1060
|
|
VERTICAL
|
Channels
|
2
|
|
Bandwidth
|
60MHz
|
|
Rise Time
|
5.8ns
|
|
Input Impedance
|
Resistance: 1M ; Capacitance: 15 pF
|
|
Input Sensitivity
|
10mV/div to 5V/div
|
|
Input Coupling
|
AC, DC and GND
|
|
Vertical Resolution
|
8 bits
|
|
Maximum Input
|
400V (DC+AC Peak)
|
|
HORIZONTAL
|
Real-Time Sampling Rate
|
150MSa/s
|
|
Equivalent Sampling Rate
|
50GSa/S
|
|
Time Base Range
|
5ns/div~1000s/div
|
|
Memory Depth
|
32k at Single Channel, 16k at Dual Channel
|
|
Time Base Precision
|
±50ppm
|
|
TRIGGER
|
Source
|
CH1, CH2
|
|
Mode
|
Edge, Pulse Width, Alternative
|
|
X-Y MODE
|
X-Axis Input
|
Channel 1
|
|
Y-Axis Input
|
Channel 2
|
|
Phrase Shift
|
Max.3 degree
|
|
CURSORS AND MEASUREMENT
|
Voltage Measuremet
|
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot
|
|
Time Measuremet
|
Frequency,Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
|
|
Delay Measuremet
|
Delay time from ch1 rising edge to ch2 rising edge
|
|
Delay time from ch1 falling edge to ch2 falling edge
|
|
Cursors Measuremet
|
Manual, Track, Auto Measure Modes
|
|
Waveform Signal Process
|
|
CH1+/- CH2, CH1xCH2, CH1/CH2, FFT, Invert
|
|
Storage
|
Storage
|
15 Waveforms and Setups
|
|
METER MODE
|
Maximum Resolution
|
6,000 Counts
|
|
DMM Testing Modes
|
Voltage, Current, Resistance, Capacitance,Diode & Continuity
|
|
Maximum Input Voltage
|
AC: 600V, DC: 800V
|
|
Maximum Input Current
|
AC: 10A, DC: 10A
|
|
Input Impedance
|
10 MΩ
|
|
DISPLAY
|
TFT LCD Type
|
5.7 Inch with LED Backlight Display
|
|
Display Resolution
|
240 (Vertical) x 320 (Horizontal) Dots
|
|
INTERFACE
|
USB
|
USB Host / Device 2.0 Full Speed Supported
|
|
Optional
|
RS232, LAN
|
|
POWER SOURCE
|
Line Voltage Range
|
AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA
|
|
Battery Power (Installed)
|
6 Hours (Li-ion Battery)
|
|
MECHANICS
|
Dimension
|
245 x 163 x 52 (mm)
|
|
Weight
|
1.2Kgs
|
|
Other
|
GND Reference
|
Oscilloscope and Multimeter Independence
|

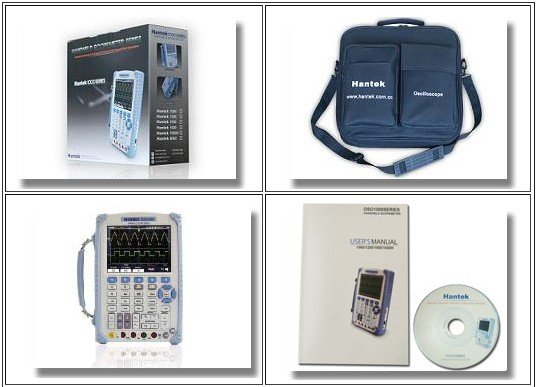

.jpg "handheld oscilloscope-4(0).jpg")
