XTOOL EZ500 HD Heavy Duty Full System Diagnosis

XTOOL EZ500 HD Heavy Duty Full System Diagnosis with Special Function

Top Reasons to Buy XTOOL EZ500 HD:

Easy registration with EZ500 HD connected to WIFI
One-click software update via WIFI
Remote access
Diagnosis reports in PDF file
Record and playback live data
8.0 inch multi-touch screen
On-board battery
Extensive vehicle coverage for most US, Asian and European vehicle makes

Layout of EZ500 HD

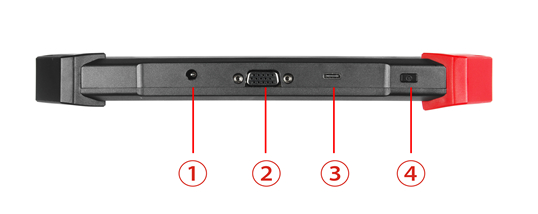

Top View of EZ500 HD Tablet

1.DC Charging Interface: Battery charge, DC 12V.
2.DB15 Interface: Directly connect with truck to establish wire connection.
3.USB Type C Interface: Compatible with HDMI TV; Transfer audio and video simultaneously
4.Power Button

Side View of EZ500 HD Tablet

1.Headphone Jack
2.TF Card Slot
3.Mini HDMI Port

Front View of EZ500 HD Tablet

Back View of EZ500 HD Tablet

EZ500 HD Exploded Diagram

Connect to the vehicle directly with cable

1.EZ500 HD Mainframe
2.Main Test Cable
3.OBD2 16pin Connector
4.OBD 6+9 Pin Connector or other connectors
5.Vehicle

Extensive vehicle coverage for most US, Asian and European vehicle makes

Specifications:
Operating System:    Android 4.4.4
Memory:    1GB RAM,16GB Flash
CPU:    Quad Core, 1.6GHz
Display:    8.0 Inch IPS 10-Point Multi-touch Screen with 1024×600P Resolution
Sensors:    Gravity Sensor, Light Sensor
Input/Output:    Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, DC5.5, TF Card Port
Battery:    4000mAh, 7.4V
Wi-Fi:    WIFI 2.4Ghz
Power Voltage:    12V
Power Consumption:    29.6W
Operating Temperature:    -20 to 50 °c(-4 to 126 °f)
Humidity:    <90%
Dimension:     (L*W*H): 240*177*30mm

Package including:
1x EZ500 HD Tablet
1x Charger for Tablet
1x Charger Cable US
1x Charger Cable EU
1x OBD II-16
1x SELFTEST
1x OBD-R16
1x CAT-9
1x ISUZU-3
1x ISUZU-20
1x DENSO-12
1x CUMMINS-6
1x CUMMINS-9
1x IVECO-30
1x VOLVO-8
1x BENZ-14
1x Universal Cable
1x Battery Cable
1x Cigar Lighter Cable
1x DB15 Main Cable
1x USB TYPE-C Cable
1x Tool Case
1x Carton
1x Certificate of Quality
1x Packing List
1x User Manual
