XTOOL EZ400 Diagnosis tool Supporting Android System



1. Top 6 Reasons to Choose EZ400:


1. Extensive vehicle coverage for most US, Asian and European vehicle makes
2. Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer, Body (ECM), Chassis
3. Support Special function: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment…..
4. Support WIFI connection, PAD support Android System
5. Support online update.
6. Same Function as Xtool PS90,but can not read EEPROM.

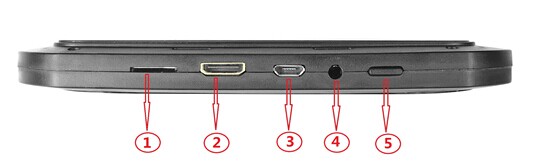

2. Layout of EZ400
1. SD Card Port: up to 32GB extension SD card
2. HDMI Port: Compatible with HDMI
3. Micro USB: Battery charge or data synchronization with PC.
4. Audi Port: For headphone
5. Power Button: Power on or off
3. EZ400 with Stand
4. EZ400 Exploded Diagram

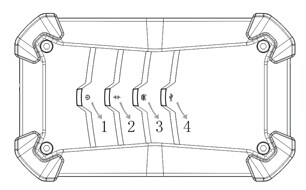

5.Introduction of EZ400 VCI Box:
1. Power Indicator: it turns green when power is on.
2. Bluetooth Indicator: it turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.
3. Vehicle Indicator: When VCI box is connected with vehicle successfully, it turns green.
4. USB Indicator: When EZ400 tablet and VCI box are connected via USB cable, it turns green.
6. Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.
7. Vehicles Supports
American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn

Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach,
Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV

Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more…

Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...
8. Specs:
Operating System: Android 4.4.4
Memory: 1GB RAM,16GB Flash
CPU Quad Core, 1.3 GHz
Display 7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Sensors: Gravity Sensor, Light Sensor
Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USB Port, TF Card Port
Battery: 2400mAh, 3.7V
Power Voltage: 5V
Power Consumption: 8W
Operating Temperature: -20 to 50℃(-4 to 126℉).
midity: <90%
Dimension: (L*W*H): 208*140*15.5mm

Packing list:

OBD II-16
HONDA-3
BMW-20
TOYOTA-17
MAZDA-17R
KIA-20
HYUNDAI/KIA-10
NISSAN-14
GM/DAEWOO-12
SELFTEST
UNIVERSAL-3
SUZUKI-3
FIAT-3
CITROEN-2
AUDI-4
MITSUBISHI-12+16
BENZ-38
BENZ-14
Main Cable
battery Cable
Cigar Lighter Cable
EZ400 Tablet
VCI Box
Charger for Tablet
US Power Adapter
EU Power Adapter
Micro USB Cable
Case
Stand for EZ400
Certificate of Quality
Packing List
User Manual
Carton
