MCT-500 Universal Motorcycle scanner MCT500 Motorbike Diagnostic



Submit a wholesale Inquiry
299 reward points
Qty: Unit(s)

  • Add to WishLists
  • Add a price reduction notification
  • Add a product notice of arrival

you share on admin

MCT-500 Motorcycle Diagnostic Tools Instead of MCT-200 Scanner

Mainly for Asian Motorcycles , This is hot seller in Asian countries


Software Version: V2.5


Pay attention Please :
You need to prepare the button batteries(3V) for the main unit extra.

we will not ship Battery in the package thanks


1. Hand-held operation, convenient and flexible
2. Support for SD cards to store data and upgrades, more convenient and easy
3.Reservedcan bus interface
4. 3.2-inch color screen, clear display.

1. Read the information system
2. Read the data stream
3. Read fault codes
4. Clear fault codes
5. Freeze data
6. CO Idle speed adjustment

Power: DC10-15V
Operating Current: 250mA
Screen: 160 * 105 LCD
Keyboard: membrane keyboard
Storage temperature: -10 C to 85 C
Operating temperature: 0 C to 70 C
Humidity: <90%
Upgrade Ports: USB port
Communication ports: COM port

1.Support Motocycle
"H-O-N-D-A", "S-Y-M", "K-Y-M-C-O", "Y-A-M-A-H-A", "K-A-W-A-S-A-K-I, "S-U-Z-U-K-I", "P-I-A-G-G-I-O", "V-E-S-P-A-", "P-G-O", "H-A-R-T-F-O-R-D", "A-E-O-N", "K-T-M", "D-A-Y-U-N "etc.

2. Support Function
(1) ECU information
(2) Dynamic Data
(3) Read fault code
(4) Clear fault code
(5) Component Test
(6) Special function, such: Accelerator reset, ISC reset, CO volume adjust etc

In the dynamic data, you can check waveform, about the change of numerical curve.

Easy udpate, only need to connect PC with USB, Click "USB memory" in the manual, you can see pc find new U disk after you Click OK. Then, you can copy the update file into U disk, then turn off U disk from PC side, then you can finish update according the notices. (When TF card could not reset ok, then please turn off and re-connect, finish update as it said)

English.Chinese. Vietnamesa and Indonesian
MCT-200 Universal Motorcycles scanner Update:
1. Update procedure is easy.
1) Connect the USB cable with PC, select "USB storage" option, the PC will detect the device as new flash disk.
2) Copy the update tool files to the disk, follow the tips to finish updating procedure. ( If your TF card can not be reset, please follow the tips to disconnect and connect power, then finish the updating procedure)
2. Device can be used as a USB flash disk
When connect USB cable with PC and select "USB storage" option, the device can be used a USB flash disk which can save files based on your needs. Disable the flash disk on PC when finish using. The scanner will back to Main Menu automatically.
Replace TF card and battery
If the TF card is damaged or the battery is low, open the device back cover to replace. Make sure the scanner is power off before replacing.
NOTE: MCT-500 Motorcycle scanner's TF card is FAT32 format. Please pay attention when formatting SD card. Otherwise the scanner will not work properly


MCT 500 motor diagnostic tool Package:
1PC x MCT-500 Main Unit
1PC x Main Test Cable
1PC x S-YM cable
1PC x KY-MCO cable
1PC x SU-ZUKI-4PIN diagnostic cable
1PC x SU-ZUKI-6PIN diagnostic cable
1PC x P-GO diagnostic cable
1PC x YA-MAHA diagnostic cable
1PC x Battery Clamp
1PC x USB cable
1PC x HART-FOR-D diagnostic cable
1PC x AE-ON-1diagnostic cable
1PC x HON-DA diagnostic cable
1PC x PIAG-GIO/VE-SPA diagnostic cable
1PC x KA-WASAKI-4PIN cable
1PC x KA-WASAKI-4P/6PIN cable
1PC x TF Card (Standard Configuration 8G, Brand Sent randomly)

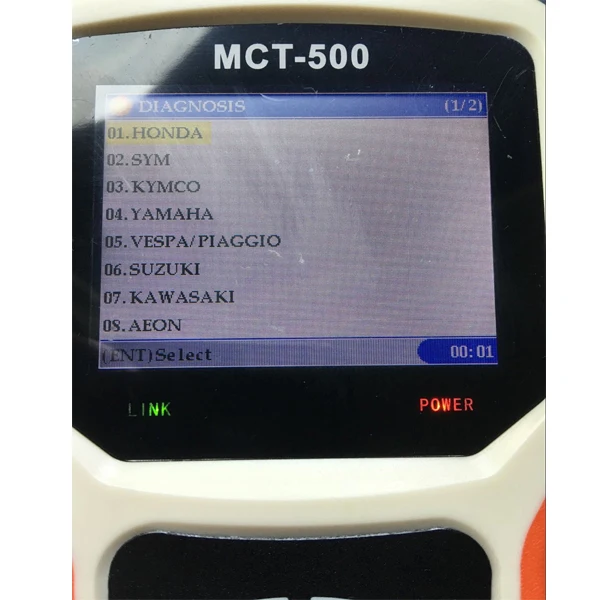

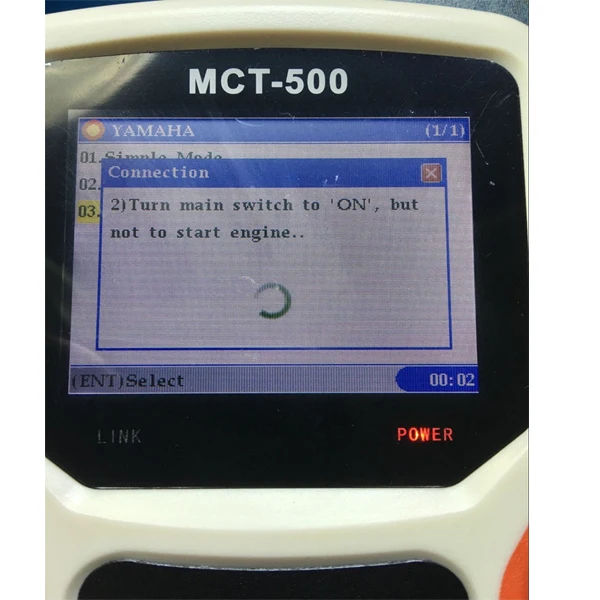

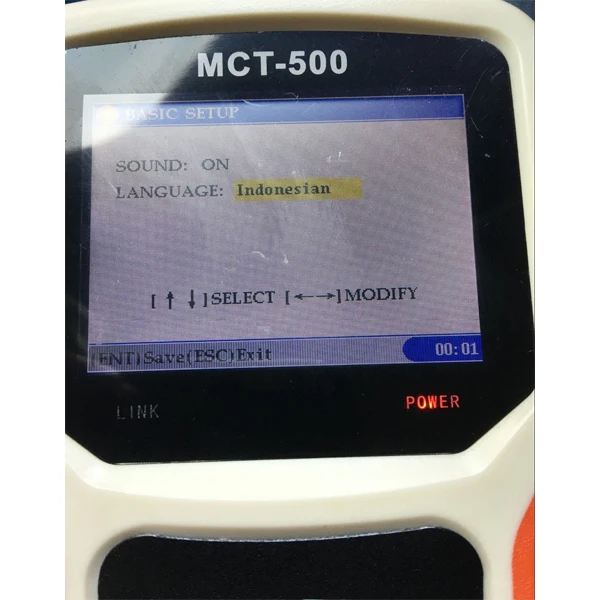

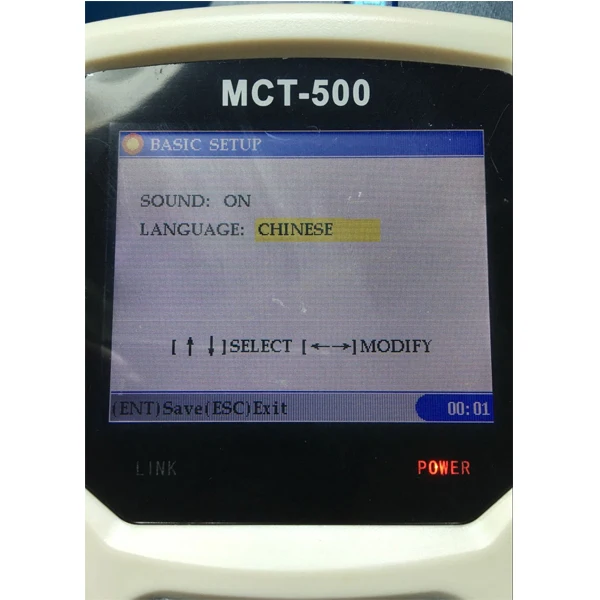

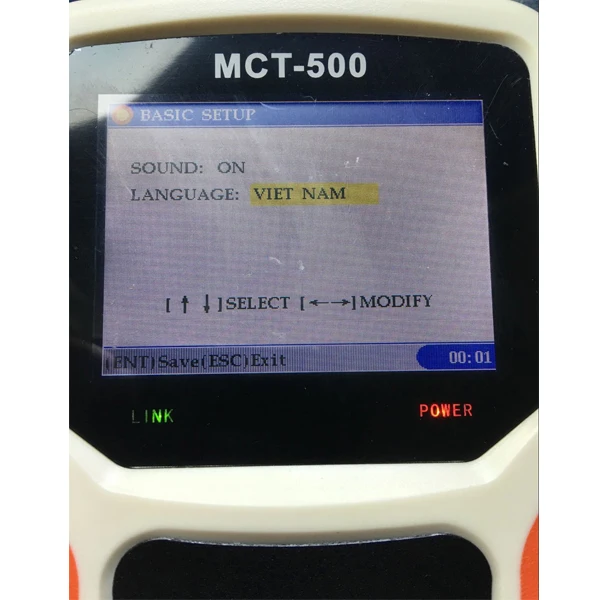

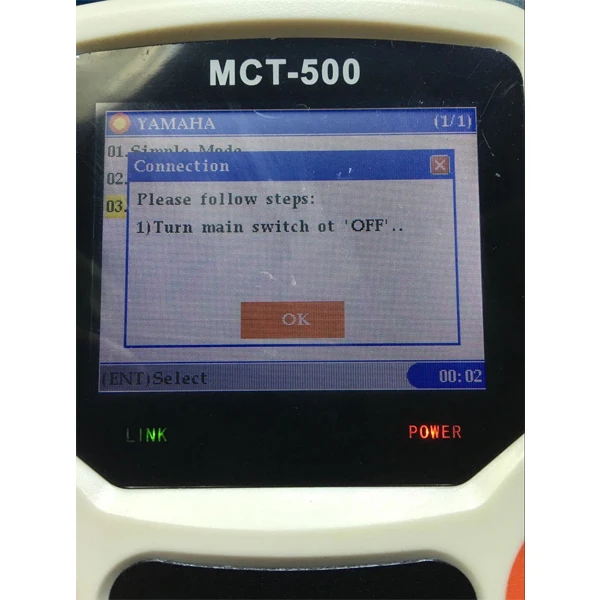

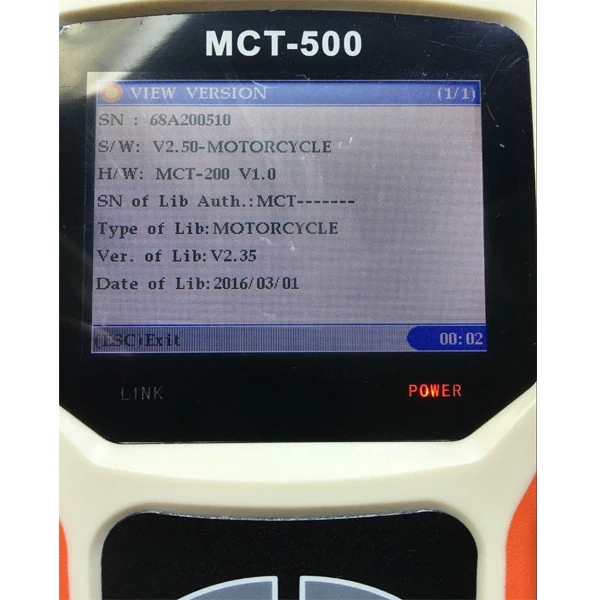

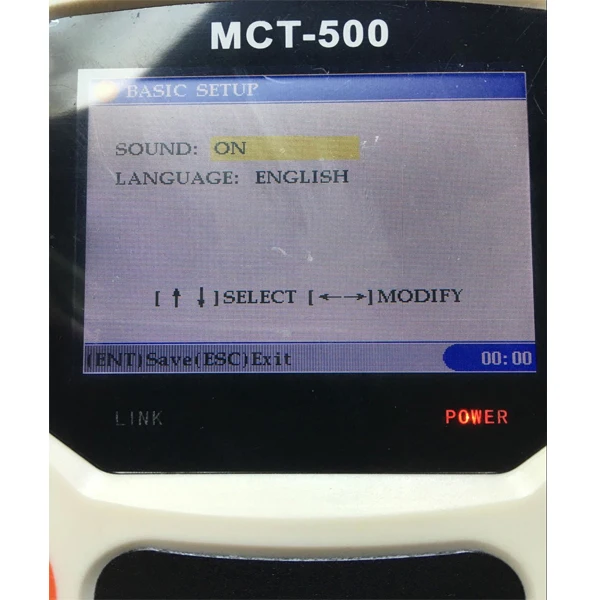

Software Short SCREEN as follows :
